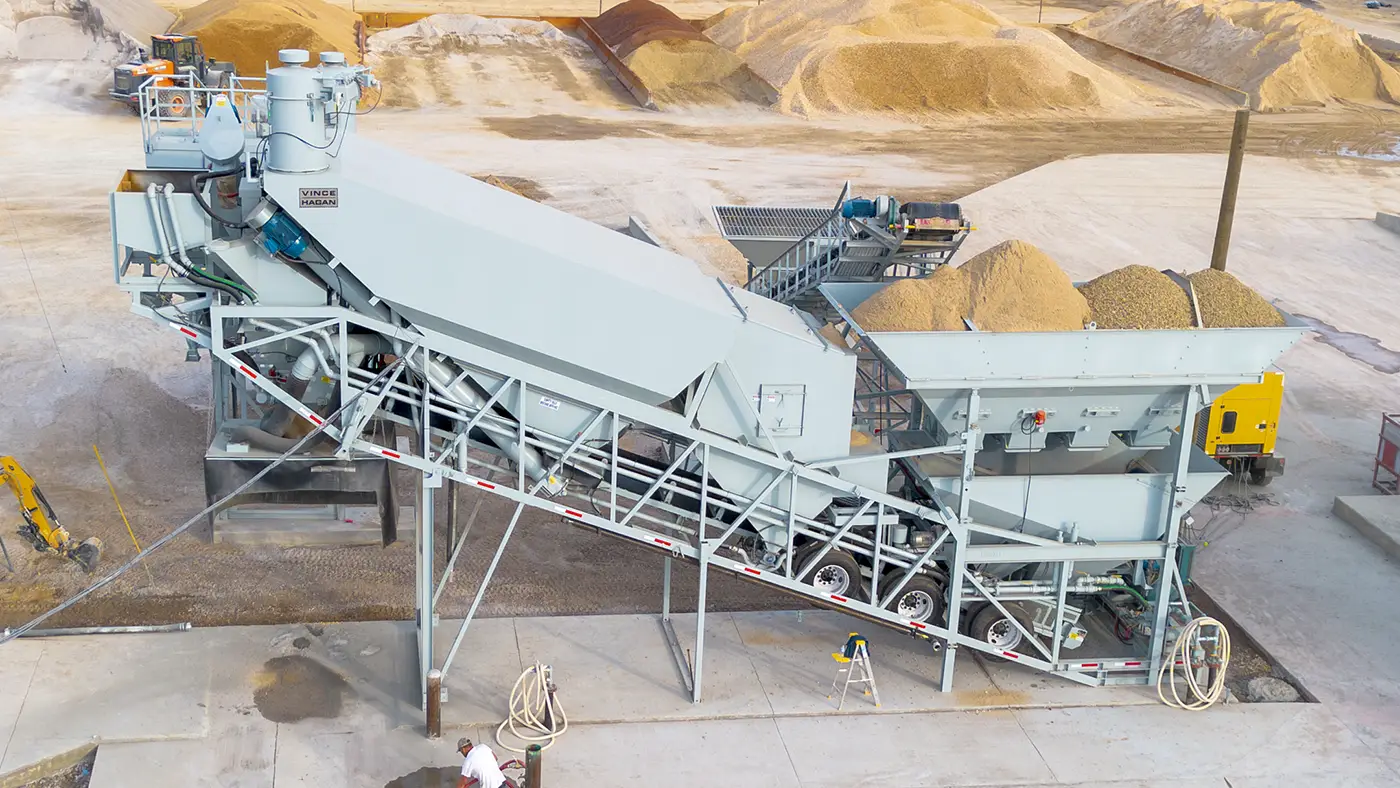

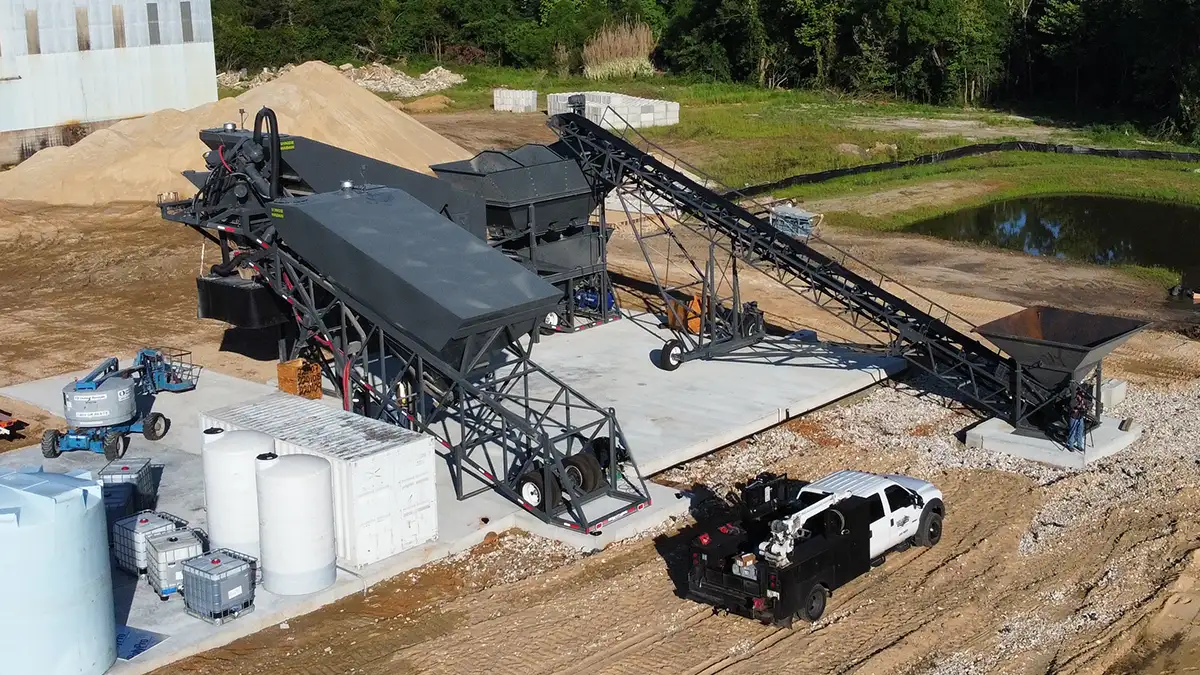

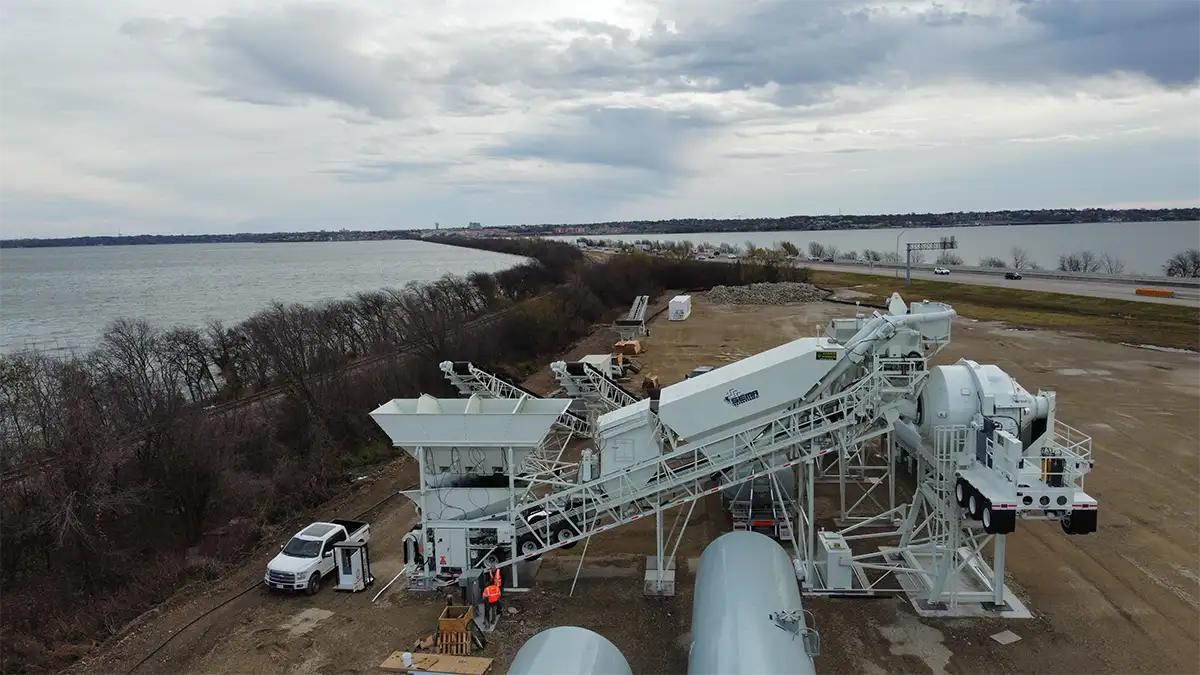

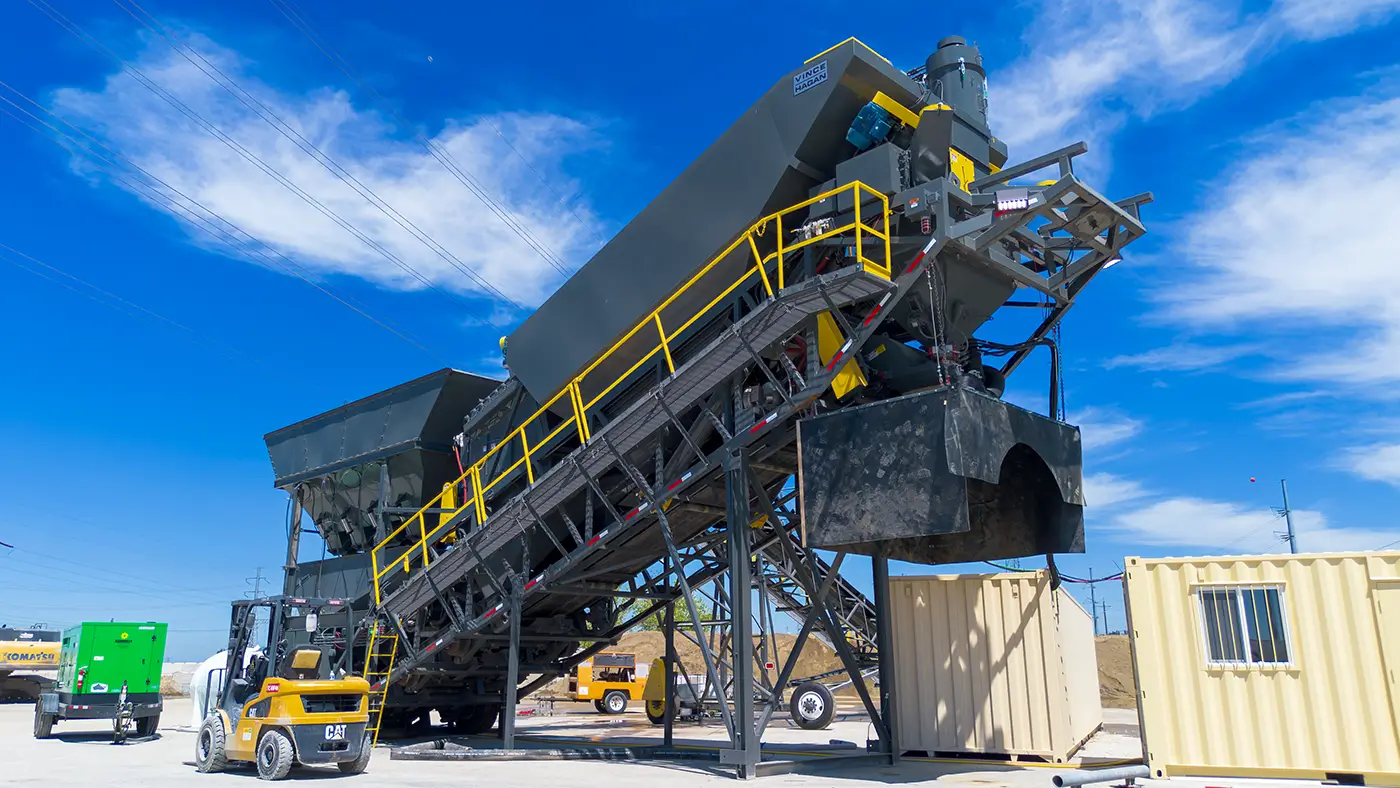

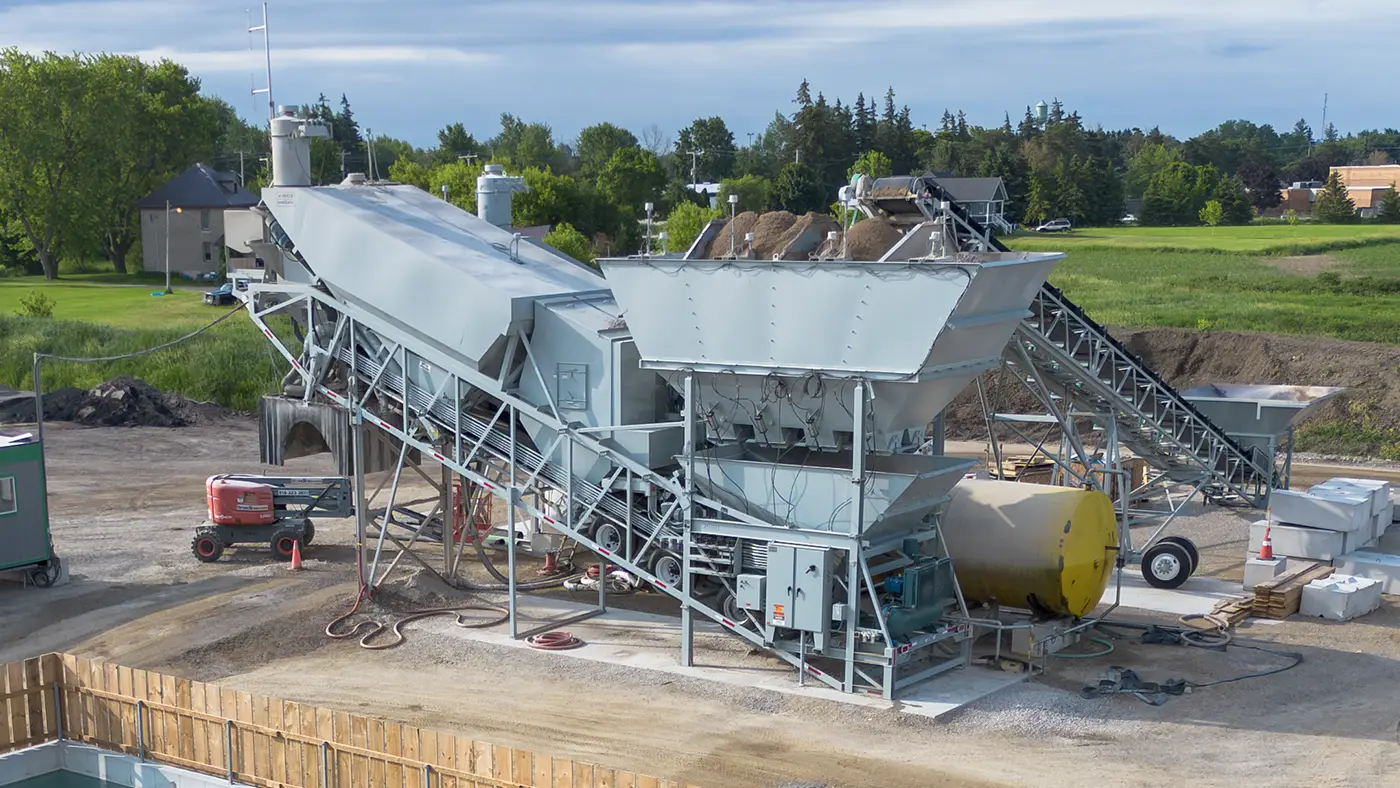

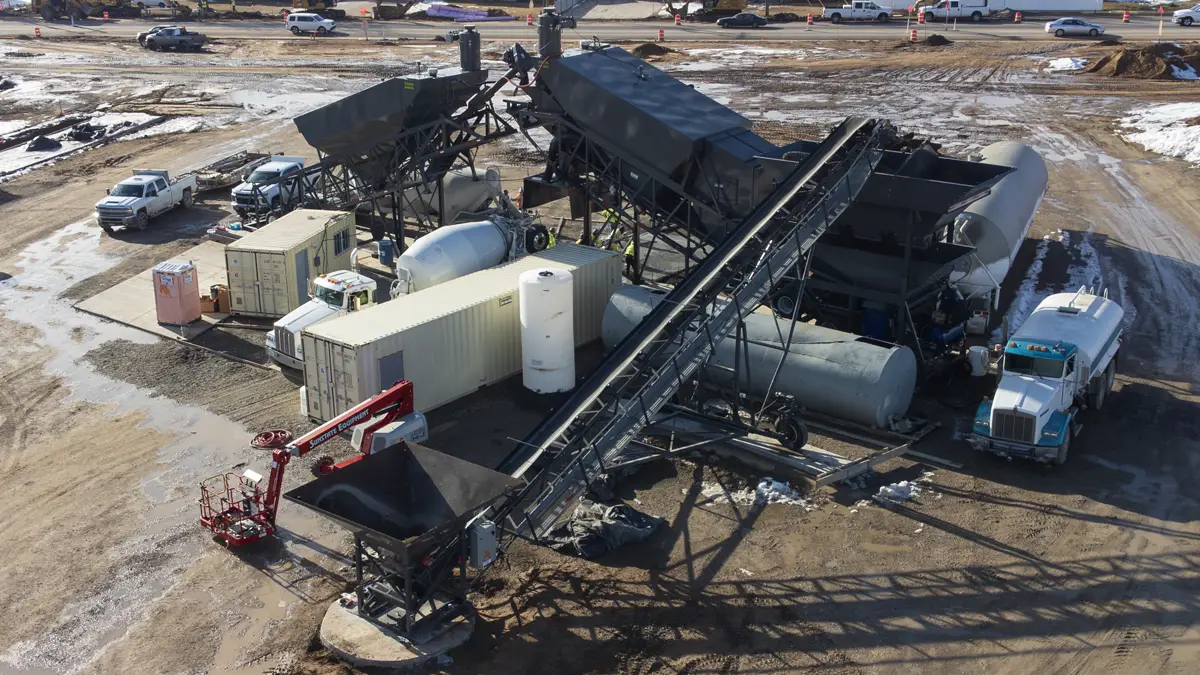

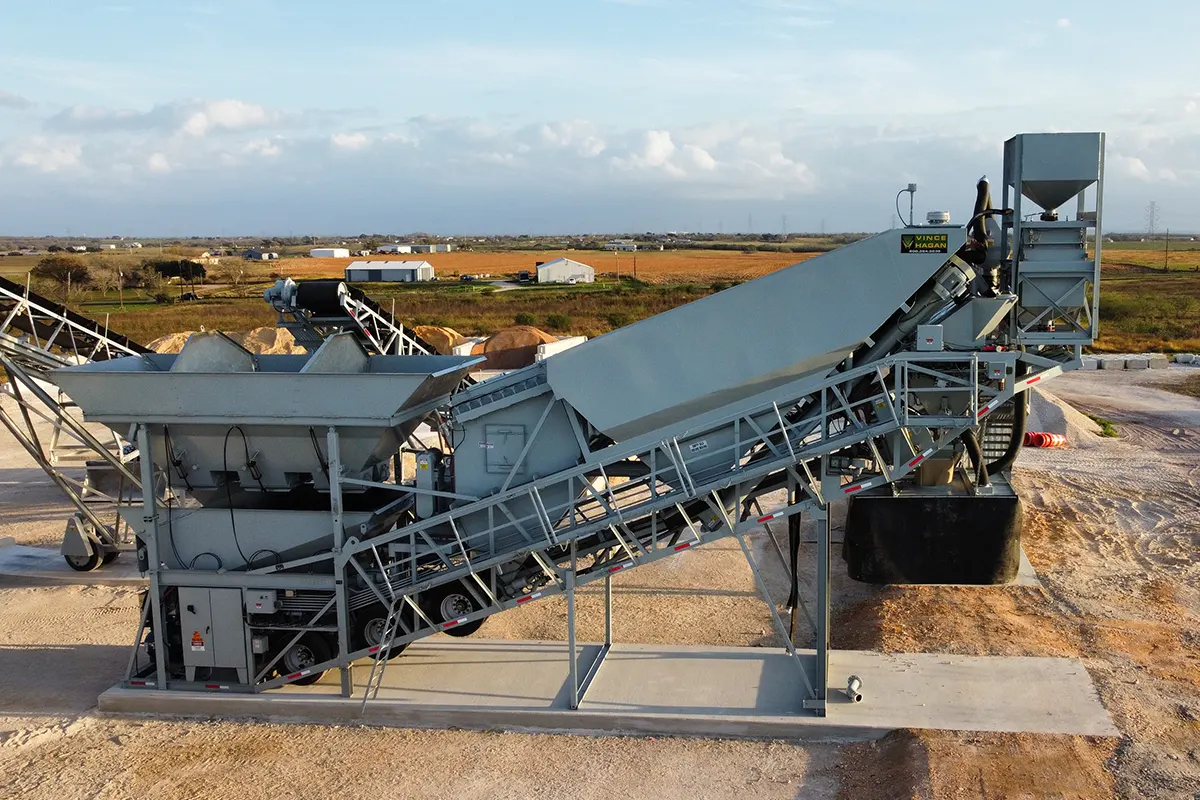

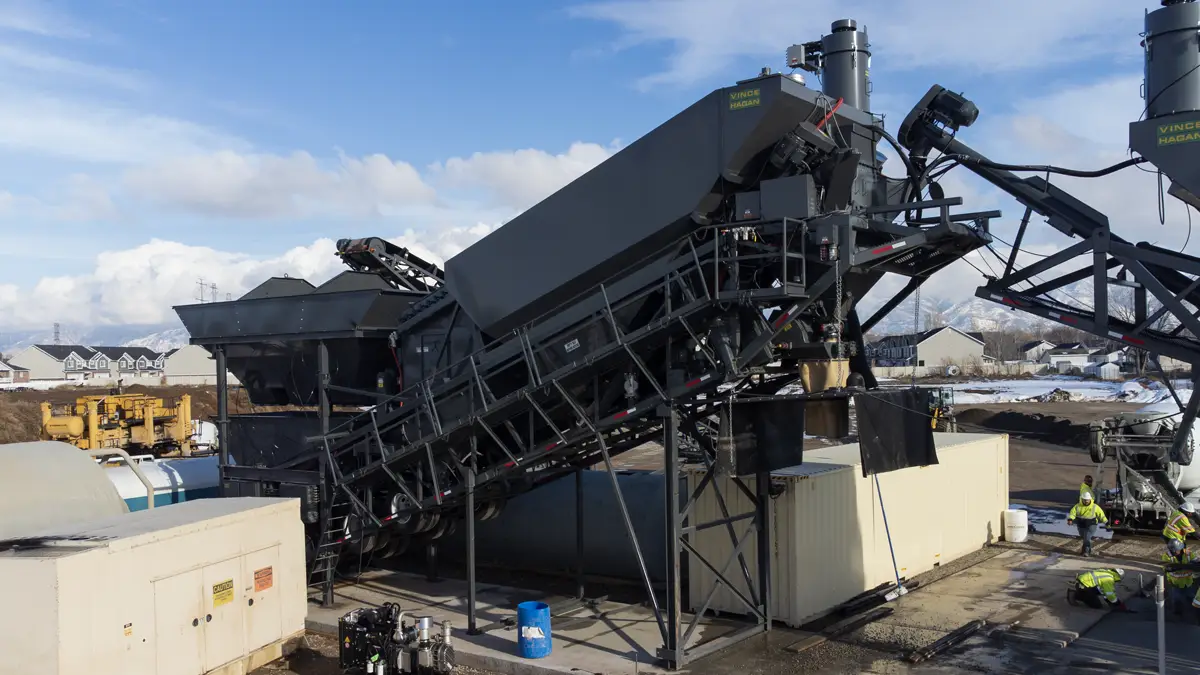

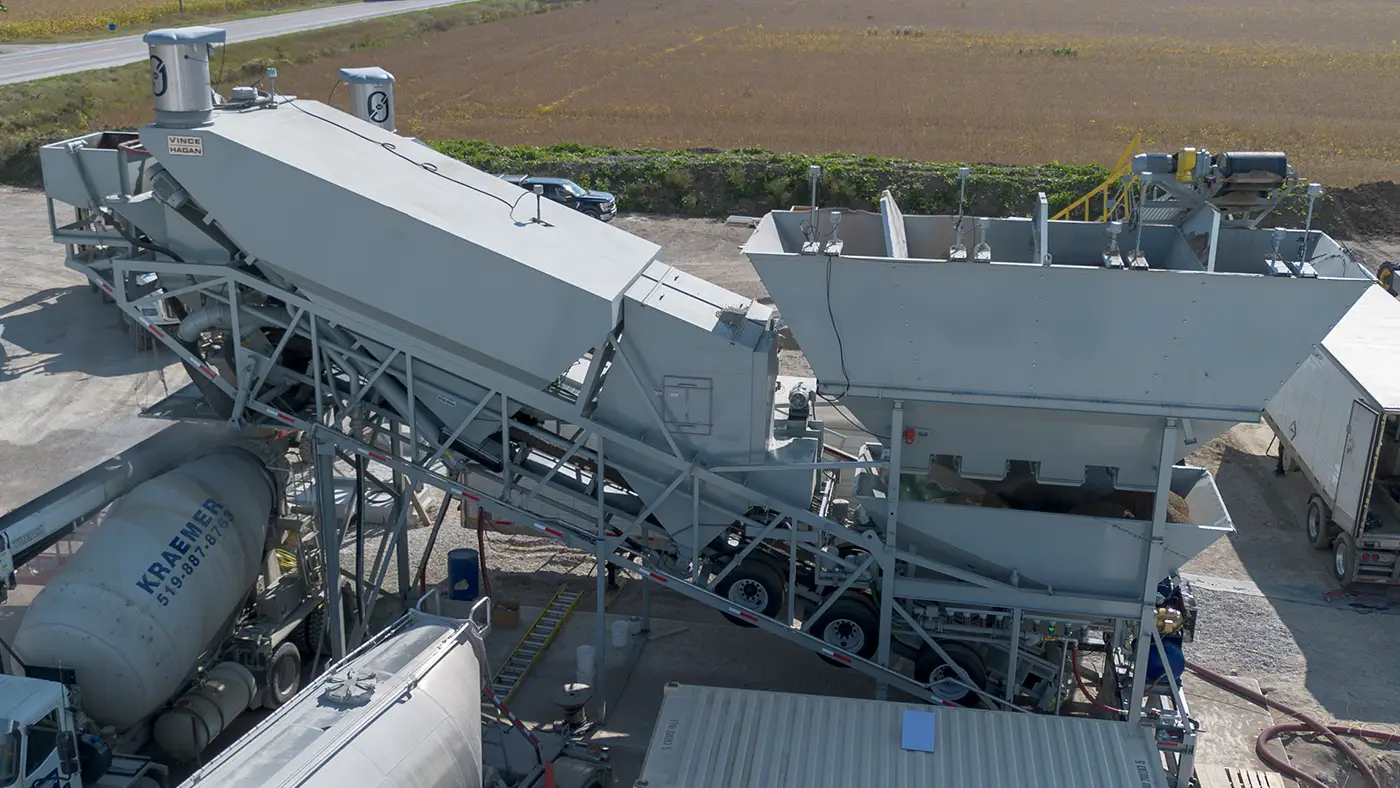

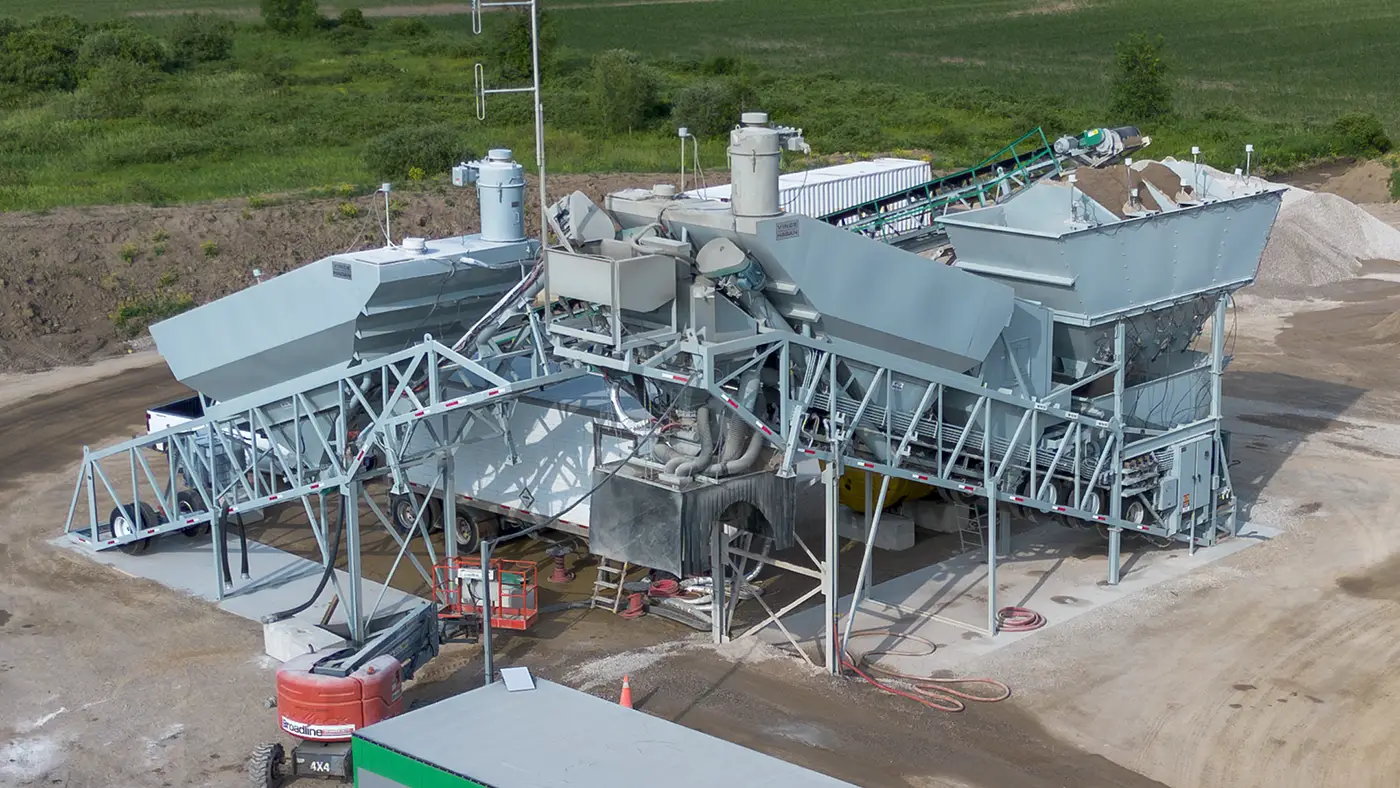

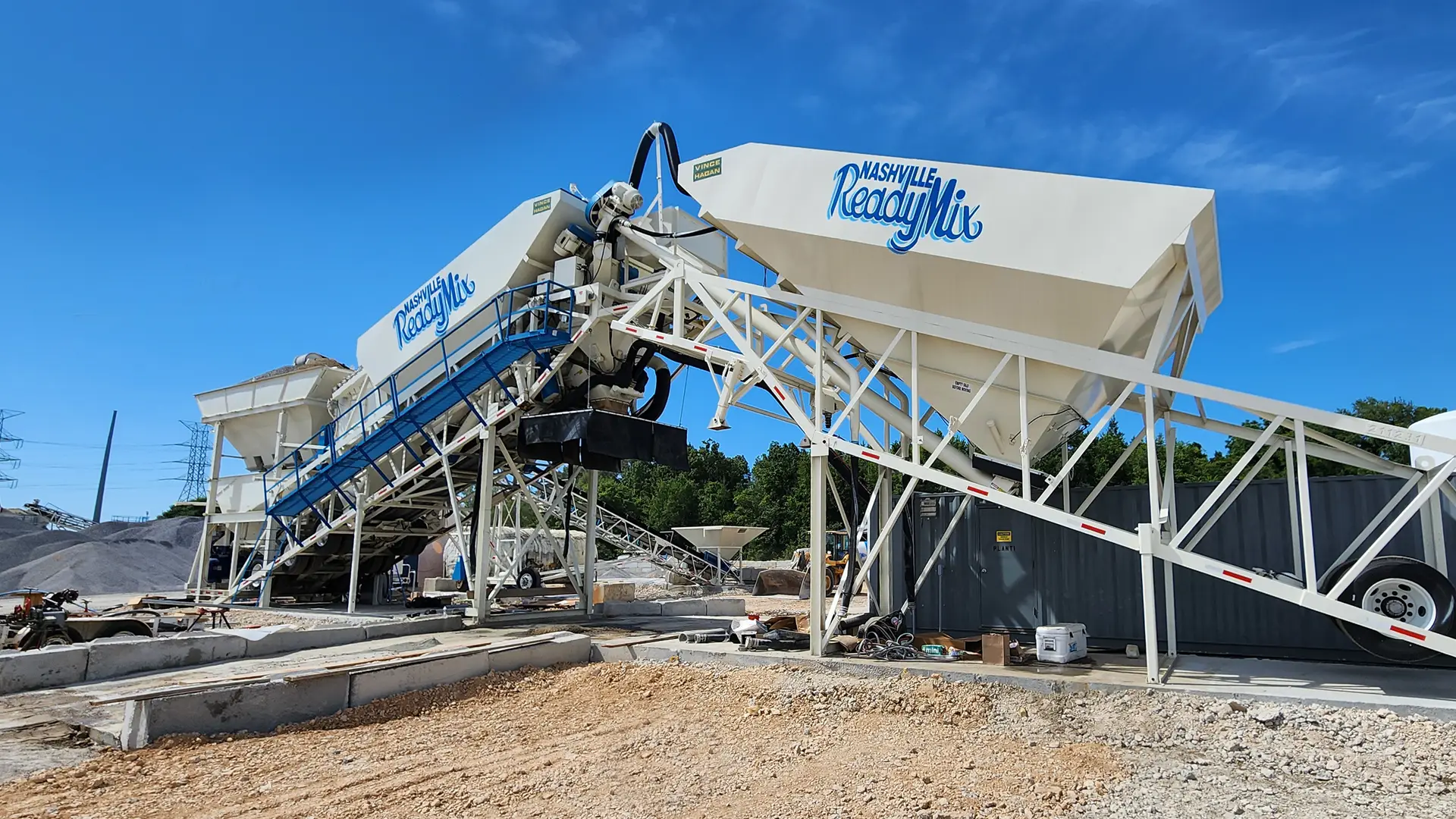

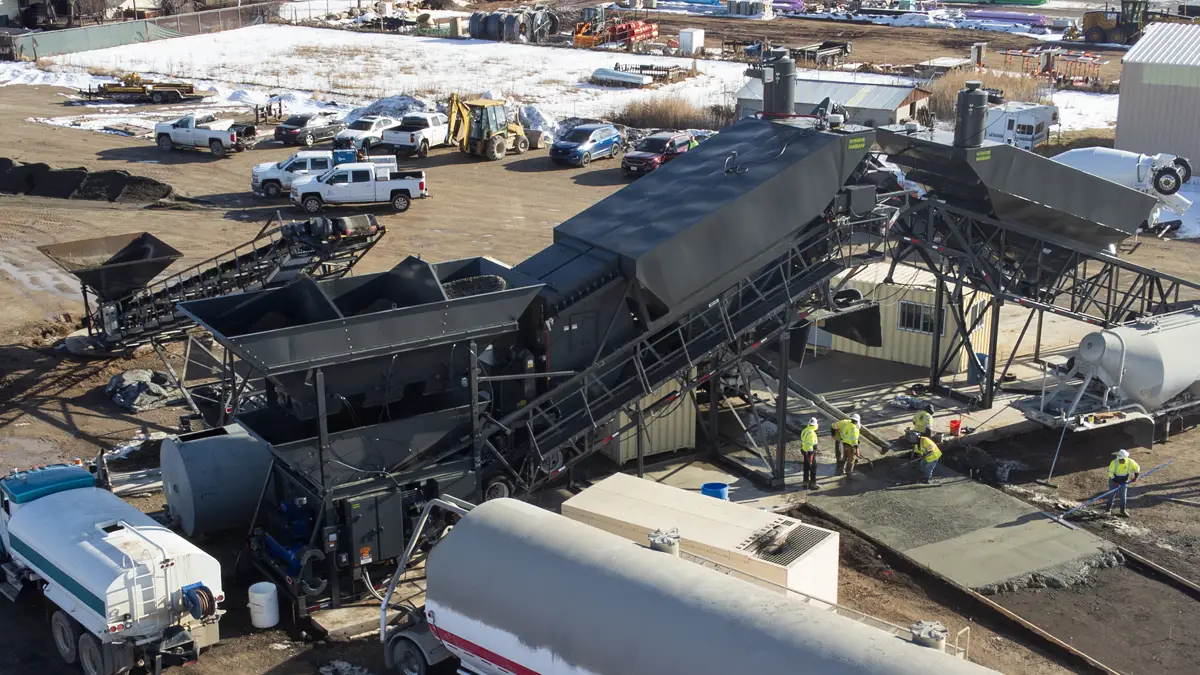

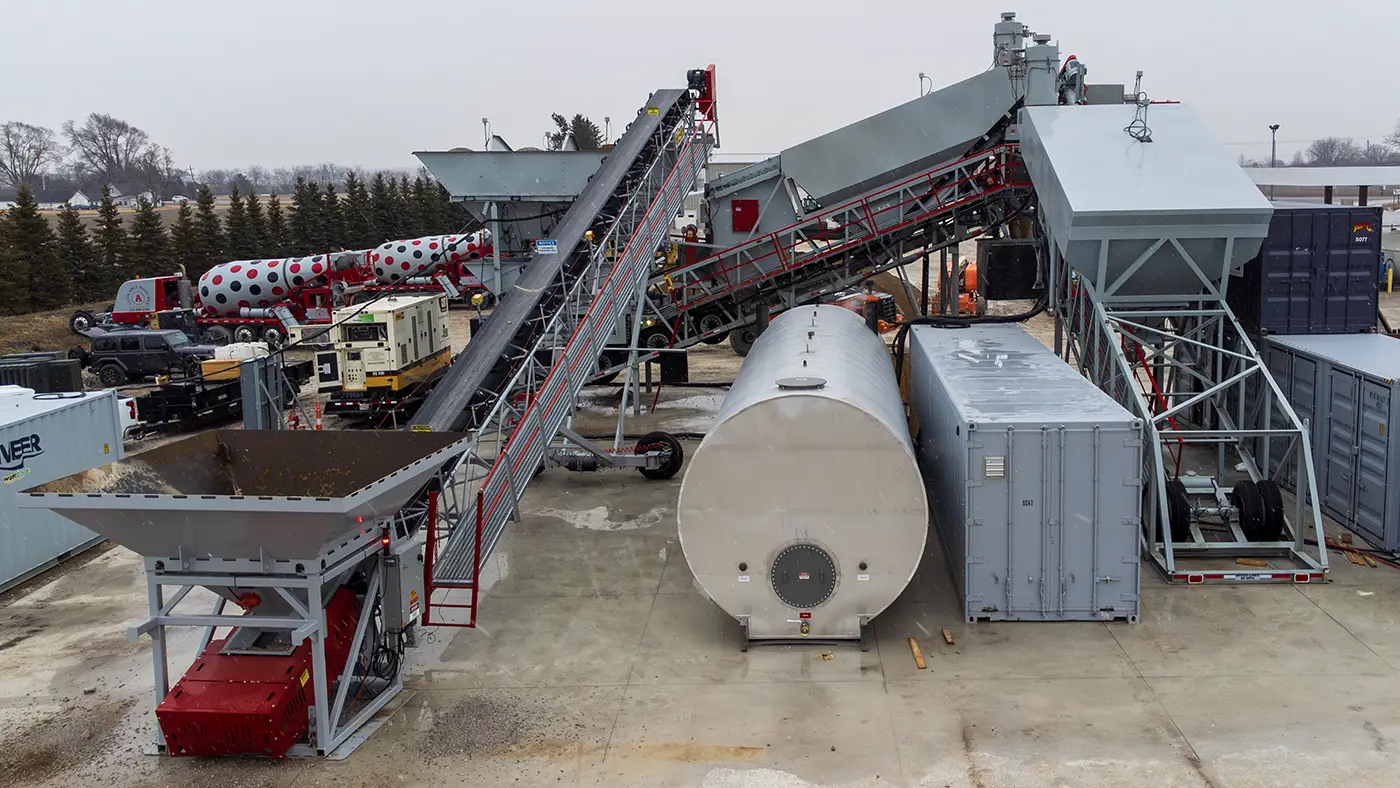

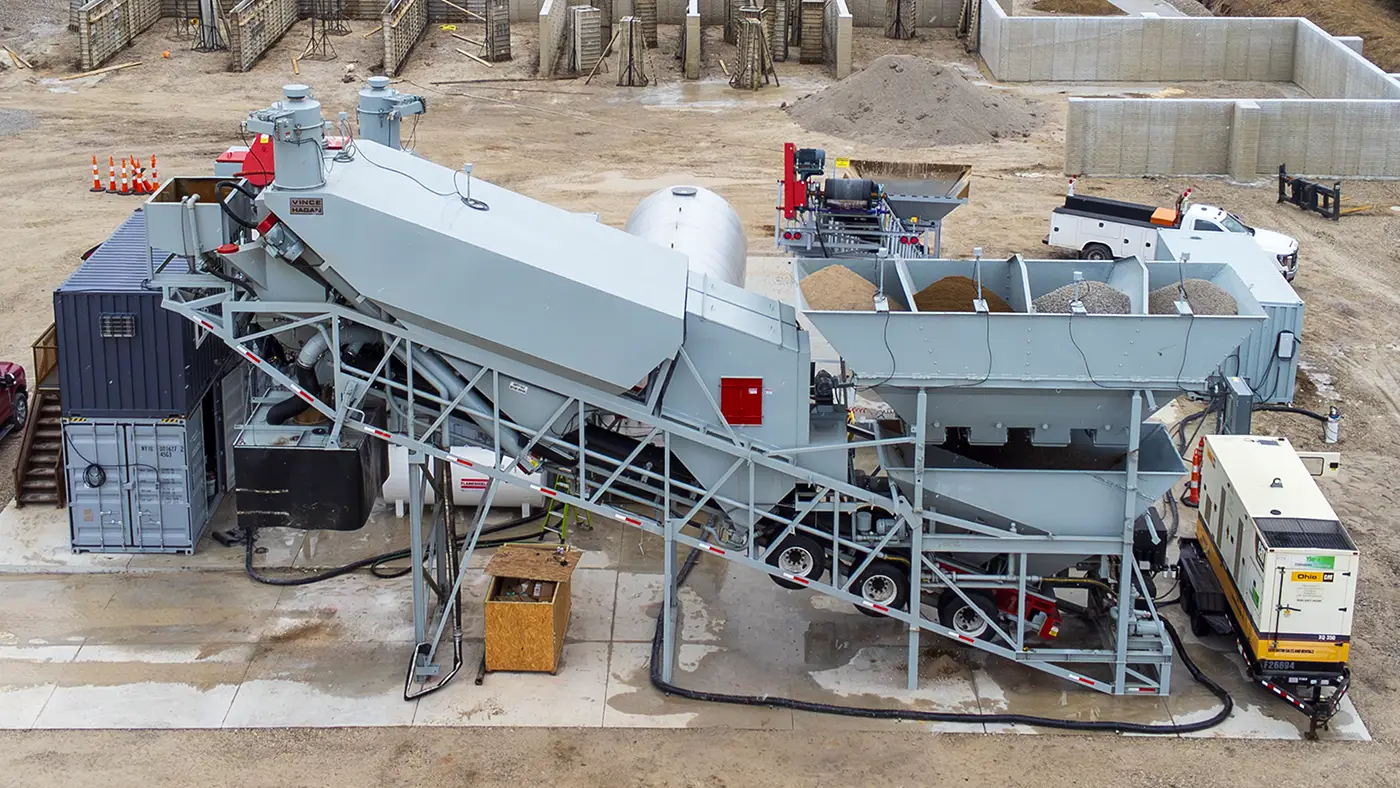

HT Series

Production rate: 120-200 YD³ Per Hour*

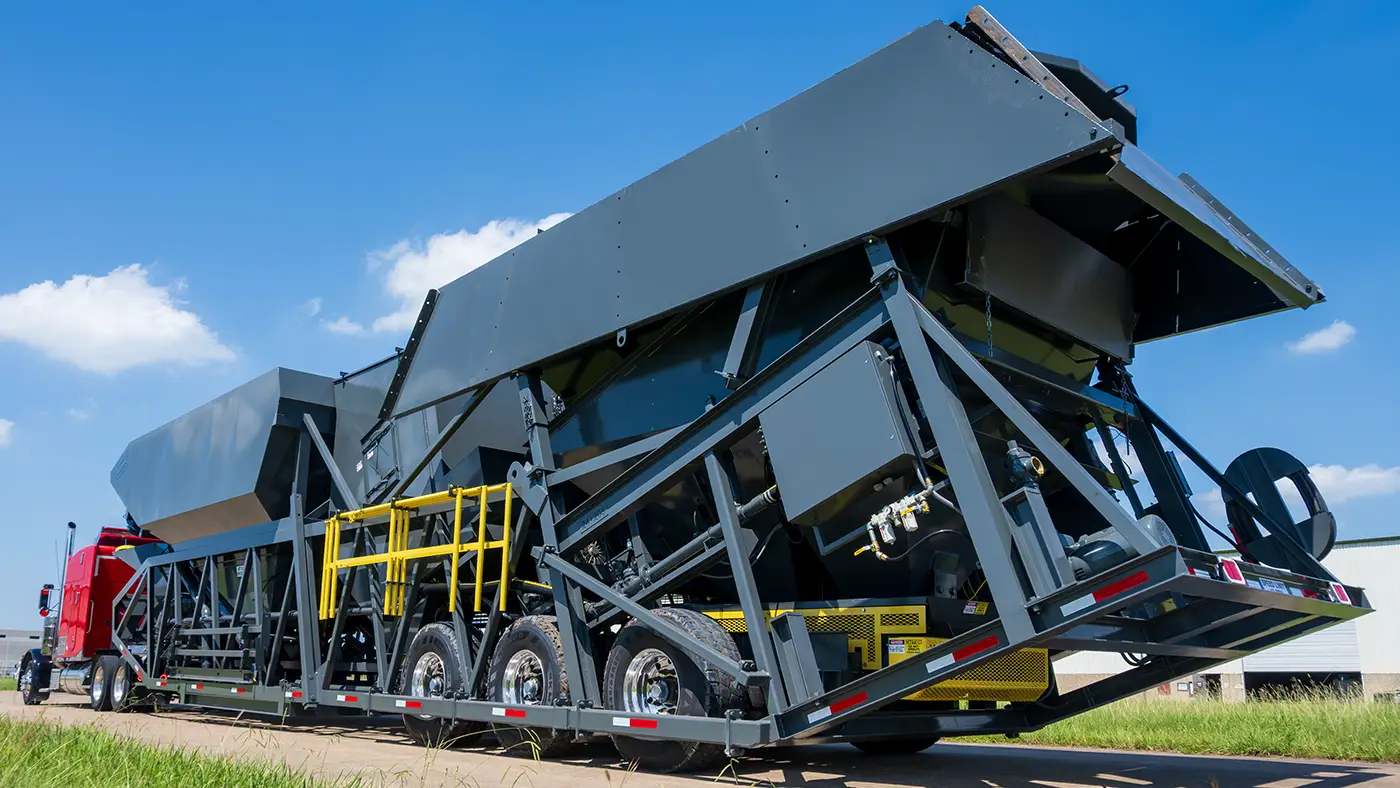

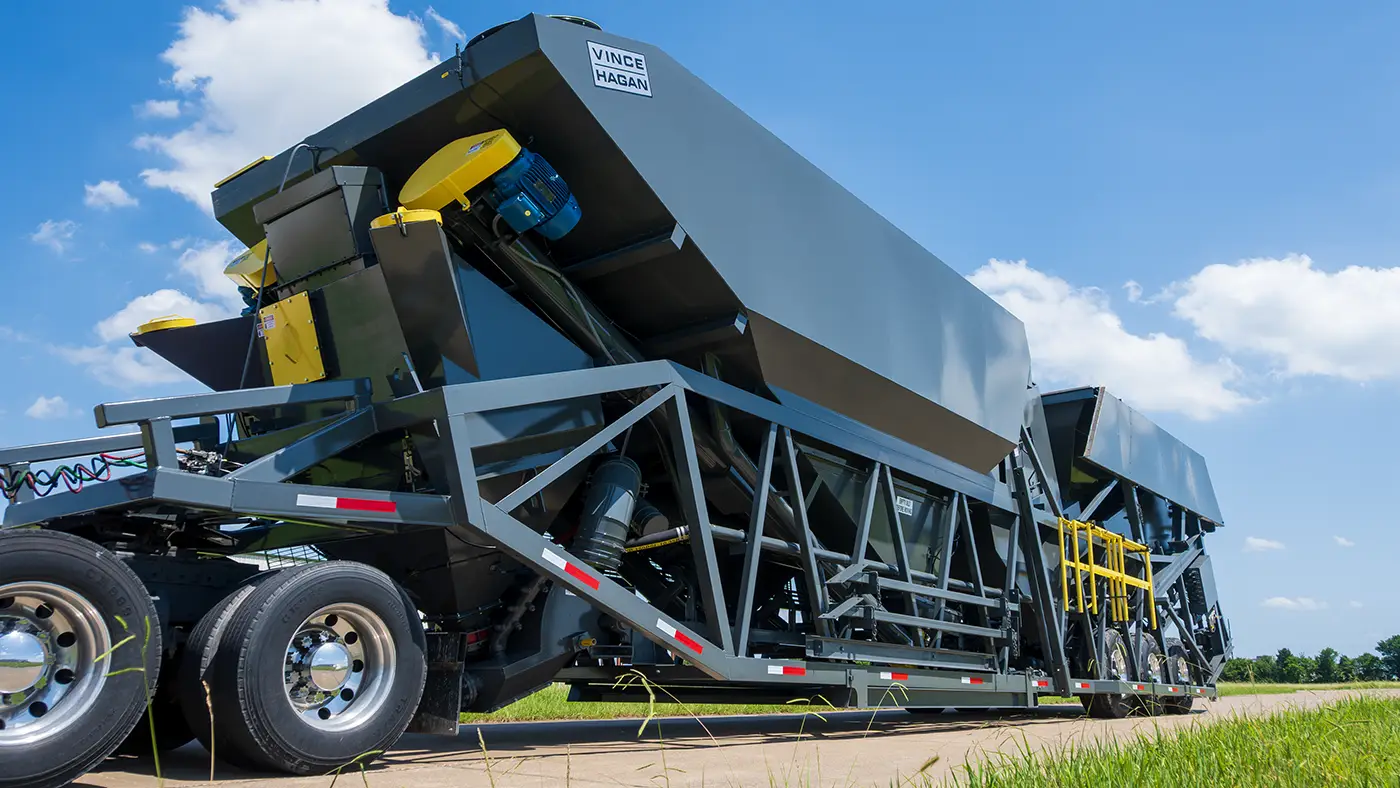

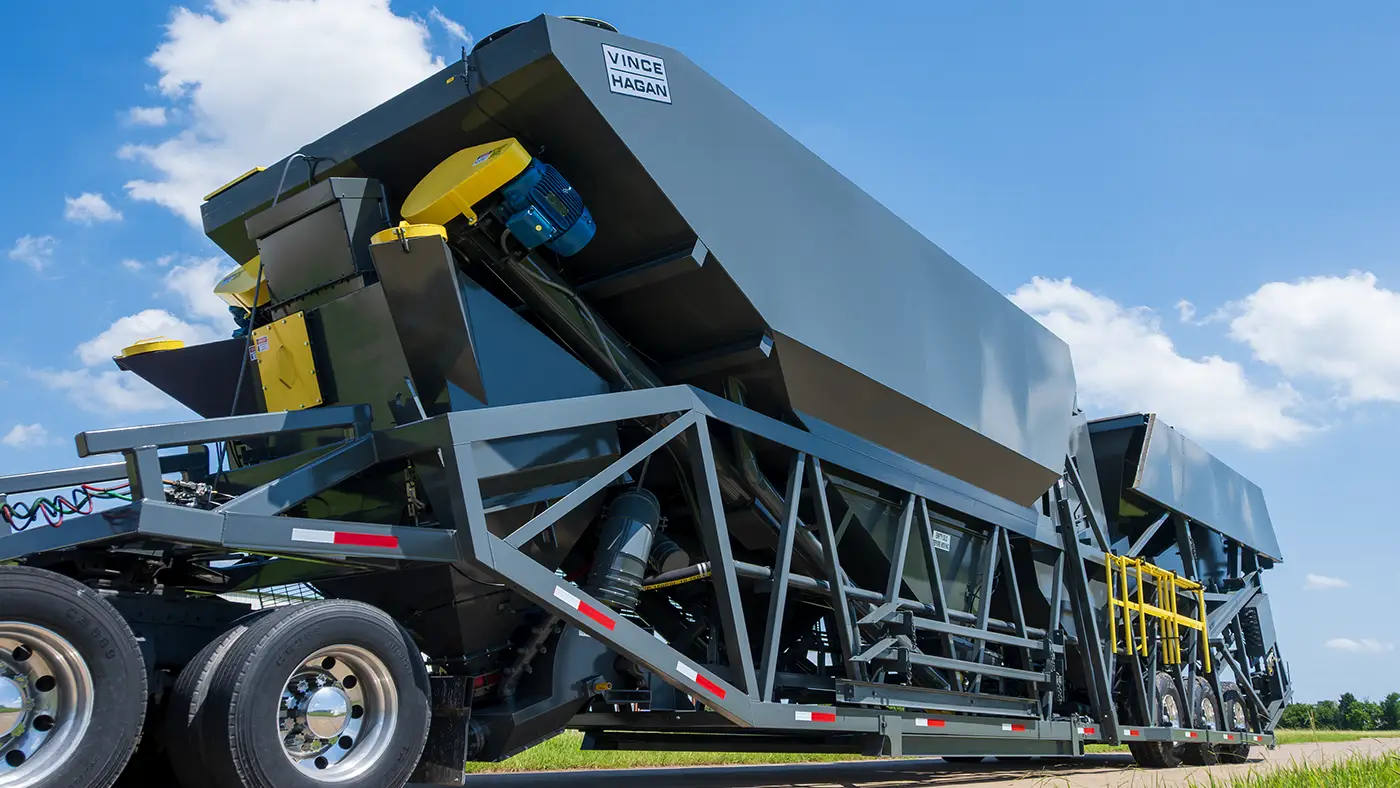

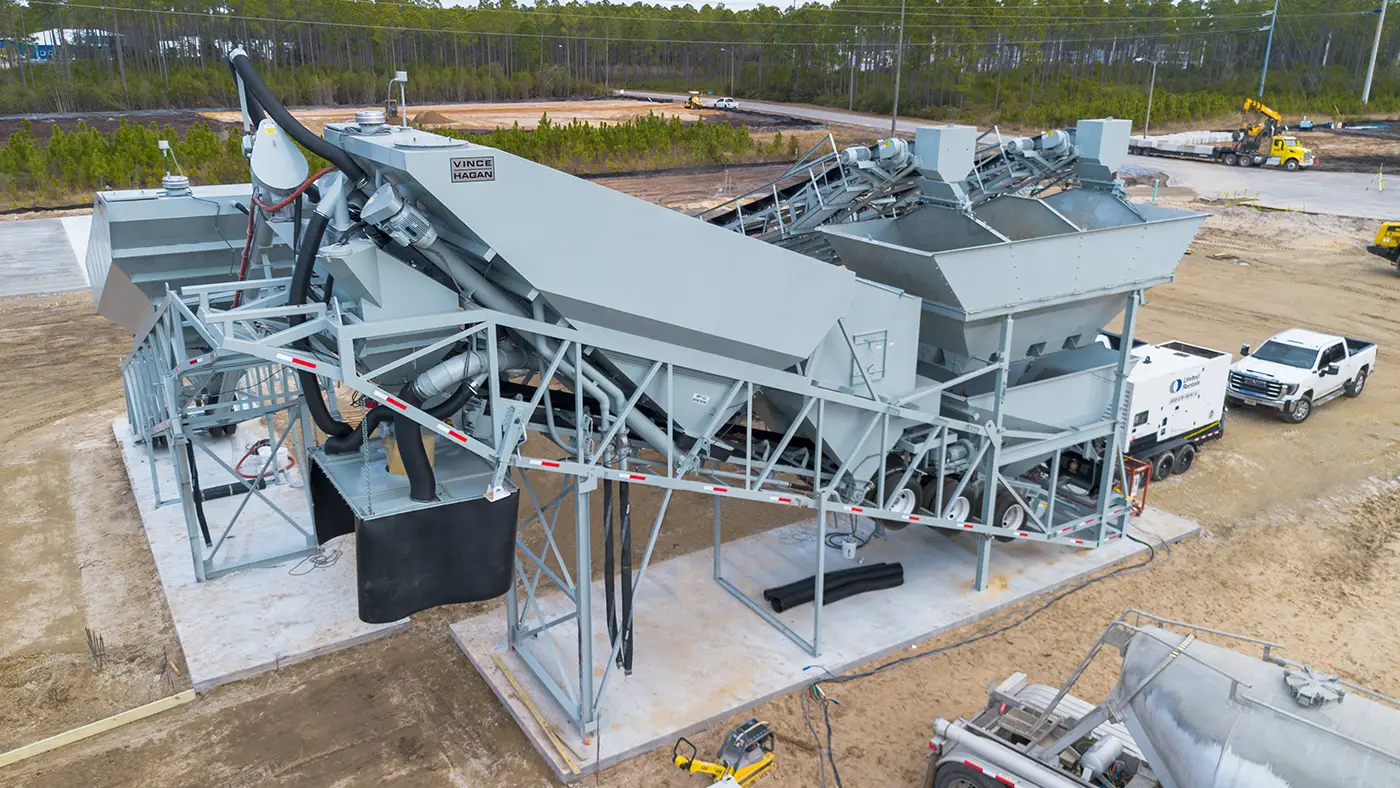

The icon of the Vince Hagan brand, the patented HT Series mobile batch plant sets the industry standard. No other plant design is as time-efficient and cost-effective as the HT Series. The heavy-duty steel truss design includes a host of options such as in-truss dust collector, weighed water system, safety walkways, and more. This means that everything you need travels as one load, saving you time and costs on transport. Our customers have had their plant erect and operational in 8 hours.

The flexibility of our HT Series mobile plants is unparalleled. It’s the only portable batch plant on the market that accommodates most paving mixers, incorporates up to 1400BBL cementitious storage (with dual, optional HCA silos), and is easily maintained with notifications via the SmartVH™ app and non-proprietary parts. Buy a mobile batch plant from the company that invented it!

U.S. Government Patent #3,251,484

High-Performance Series

180-200 YD³ Per Hour

As the top of the line in the series, the HT High-Performance Series combines speed, storage, versatility, and technology into a machine capable of meeting the demands of any ready mix job. For producers looking to maximize production with total mobility and layout flexibility, the HT High-Performance is for you.

This series standard features include up to 80 ton – 4 compartment aggregate bin, up to 1200 BBL cementitious storage (with dual, optional HCA silos), 12” screw feeders, powerful air compressor, and 36” conveyor belt. For greater production speed, this series includes the new Turbo-Flo Armor™ liners in the aggregate batcher and 2’ risers for optimal truck loading speed. With the combination of these components, the HT High-Performance Series is capable of meeting any output demands for high-quality concrete.

Key Specs

  • Retractable Self Erect System Available – No cranes needed
  • SmartVH™ Plant Monitoring System Available

  • Starlink connection for remote wireless access to plant for SmartVH™ app data and troubleshooting

  • 80 Ton – 4 Compartment Aggregate Bin

  • Up to 1200 BBL Total Cement Storage Available with optional HCA silos

  • Plant Mounted Jet-Pulse Dust Collection System with Auto-Dust Reclaim System

  • Multi-Flight Cement Screw Feeders up to 12”

  • 36” 30HP 3-Ply Vulcanized Conveyor Belt (Belt Speed 380 ft./min. up to 650 ft./min.)
  • 20hp 120 Gallon air compressor with 5hp aeration blower

  • 3” Turbo Water Meter with 450 Gallon Water Holding Tank

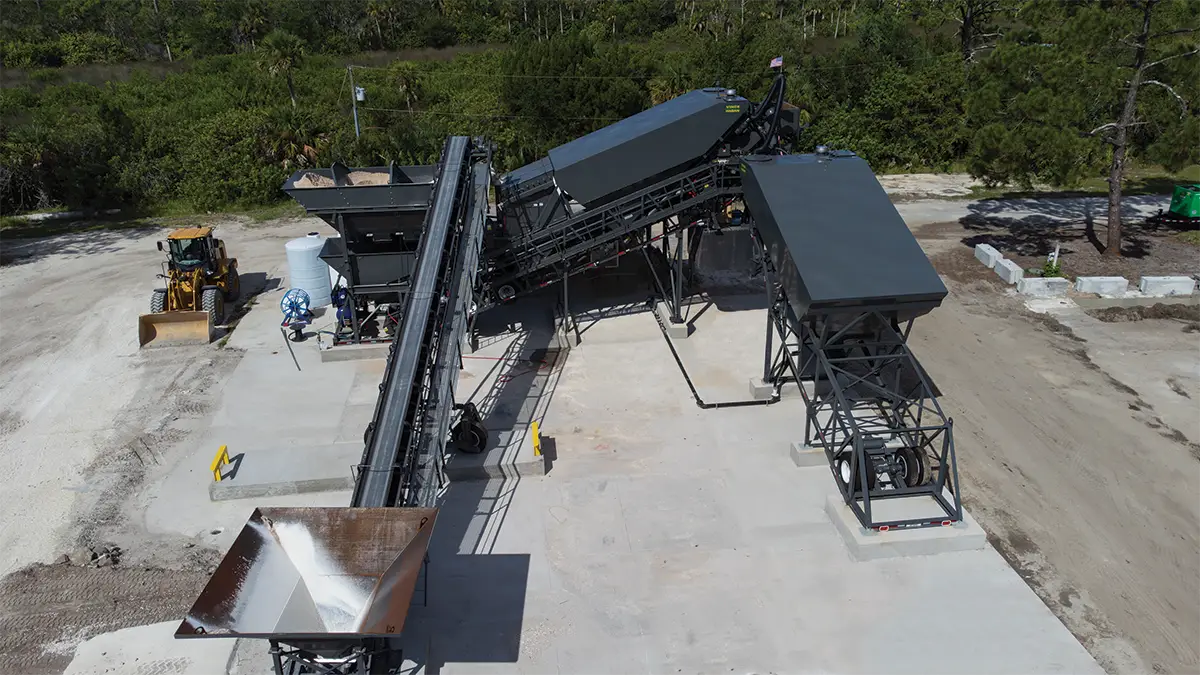

Performance Series

120-200 YD³ Per Hour

Stepping up to the HT Performance Series, producers recognize this mobile plant as the industry standard in ready mix concrete production. With an up to 80-ton aggregate bin, optional weighed water system, powerful air compressor, and 36” conveyor belt, the HT Performance Series is perfect for a wide range of producers needing to meet the demands of the market.

For producers in a hurry, the HT Performance Series has an optional retractable self erect system available. The cylinders retract into themselves, protecting them from the caustic environment. The self erect system eliminates the need for costly and time-consuming cranes. Customers have had their plant erected and operational in 8 hours.

Key Specs

  • Retractable Self Erect System Available – No cranes needed
  • No foundations needed

  • SmartVH™ Plant Monitoring System Available

  • 65-80 Ton – 4 Compartment Aggregate Bin

  • Up to 1200 BBL Total Cement Storage Available with optional HCA silos

  • Plant Mounted Jet-Pulse Dust Collection System with Auto-Dust Reclaim System

  • Multi-Flight Cement Screw Feeders up to 12”

  • 36” 30HP 3-Ply Vulcanized Conveyor Belt (Belt Speed 380 ft./min. up to 650 ft./min.)
  • 15hp 120 Gallon air compressor with 5hp aeration blower

  • Optional Weighed Water System

Essential Series

120-150 YD³ Per Hour

The HT Essential Series mobile batch plant is designed to maximize production and minimize initial costs. Whether just starting out in concrete production or looking to grow market share, the HT Essential Series is stacked with features any producer needs to deliver high-quality concrete.

It comes equipped with an in-truss, PLC-based dust control system, a 65-ton aggregate bin, 400 BBL in-truss cementitious storage, and much more. With no foundations needed and universal configuration of additional storage silos and aggregate conveyors, the versatility and value of the HT Essential Series is unmatched in the industry.

Key Specs

  • No foundations needed

  • SmartVH™ Plant Monitoring System Available

  • 65 Ton – 4 Compartment Aggregate Bin

  • Up to 1200 BBL Total Cement Storage Available with optional HCA silos

  • Plant Mounted Jet-Pulse Dust Collection System with Auto-Dust Reclaim System

  • Multi-Flight Cement Screw Feeders up to 12”

  • 30” 20HP 3-Ply Conveyor Belt (Belt Speed 380 ft./min. up to 650 ft./min.)

  • 12 Yard Aggregate Batcher & Cement Batcher

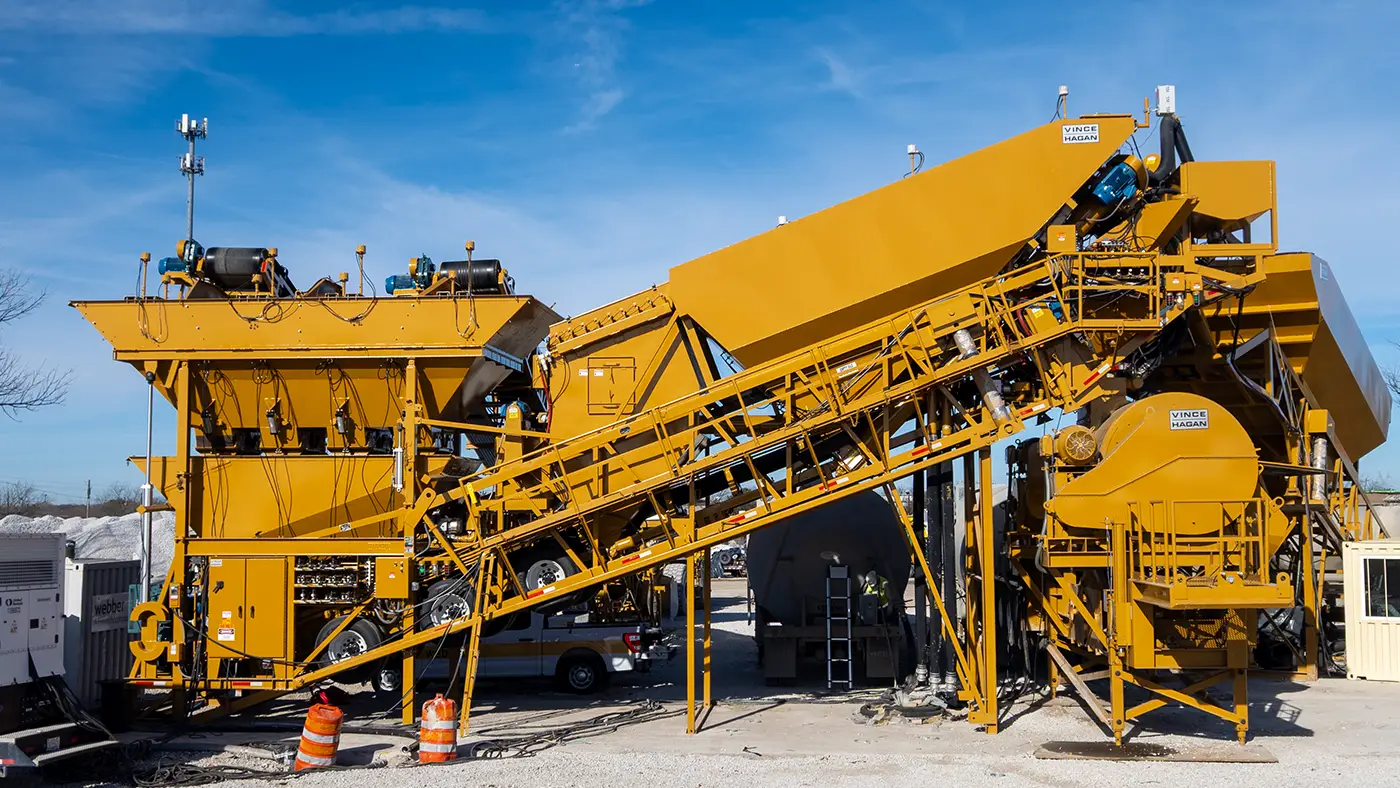

Retractable Self Erect Mobile Plants

An optional upgrade, the hydraulic self erect package can be added to the mobile plant, auxiliary silo, conveyor, and horizontal shaft mixer. Our design allows cylinders to retract, protecting them from the caustic environment and costly maintenance.

HT Series Features

Multi-Compartment Agg Bin

Feature Essential Performance High-Performance
Agg Bin 65 Ton / 4 compartment 65-80 Ton / 4 compartment 80 Ton / 4 compartment
Moisture Probes All Bins – Both Sides All Bins – Both Sides All Bins – Both Sides
Walls Bolted Bolted Bolted

12YD³ Agg Batcher

Feature Essential Performance High-Performance
Cylinders 4″ 4″ 4″
Liners None None 1/2″ Turbo-Flo™ Armor
Vibrator Electric Electric Electric

400 BBL In-Truss Silo

Feature Essential Performance High-Performance
5” Fill Pipes With 5″ Camlock (1 LH & 1 RH) With 5″ Camlock (1 LH & 1 RH) With 5″ Camlock (2 LH & 2 RH)
High Level w/Horn Yes Yes Yes
Screwfeeder 10″ 10″ 12″

Belt Conveyor

Feature Essential Performance High-Performance
Belt Width 30” 36” 36”
Grease System No No Yes
Heavy Duty Belt Wiper Yes Yes Yes
Motor Size 20 HP 30 HP 30 HP
Riser 1′-0″ 1′-0″ 1′-6″
Tandem Landing Gear Yes Yes Yes
Walkway Yes Yes Yes

12YD³ / 122FT³ Cement Batcher

Feature Essential Performance High-Performance
Left & Right Inlet Yes Yes Yes
Vibrator Electric Electric Electric

PLC-Based In-Truss Dust Collector

Feature Essential Performance High-Performance
Batcher Vent No No Yes
Ducting Quick Lock Quick Lock Quick Lock
Shroud Yes Yes Yes
VH1083JP* Yes Yes Yes

*Auto Reclaim, Electric Vibrator, Level Indicators, Photohelic Gauge

Air

Feature Essential Performance High-Performance
Aeration Blower Yes – Silo & Cement Batcher Yes – Silo & Cement Batcher Yes – Silo & Cement Batcher
Air Compressor 15HP Piston 15HP Piston 20HP Piston
Air Valve Enclosure No Yes Yes

Water

Feature Essential Performance High-Performance
Holding Tank No No Yes
Meter 3″ Turbine 3″ Turbine 3″ Turbine
Y in Line* No No Yes
15 HP Pump Future Yes Yes
Water Side Left Left Left

*Prior to Water Pump or Water Meter (Butterflies)

Other

Feature Essential Performance High-Performance
Axles Triple Triple Triple
Controls Side Right Right Right
Electrical 460V / 3PH / 60HZ 460V / 3PH / 60HZ 460V / 3PH / 60HZ
15 KVA Transformer No Yes Yes
Smart Sensors Optional Optional Optional
Tandem Landing Gear Yes Yes Yes
Walkway Yes Yes Yes

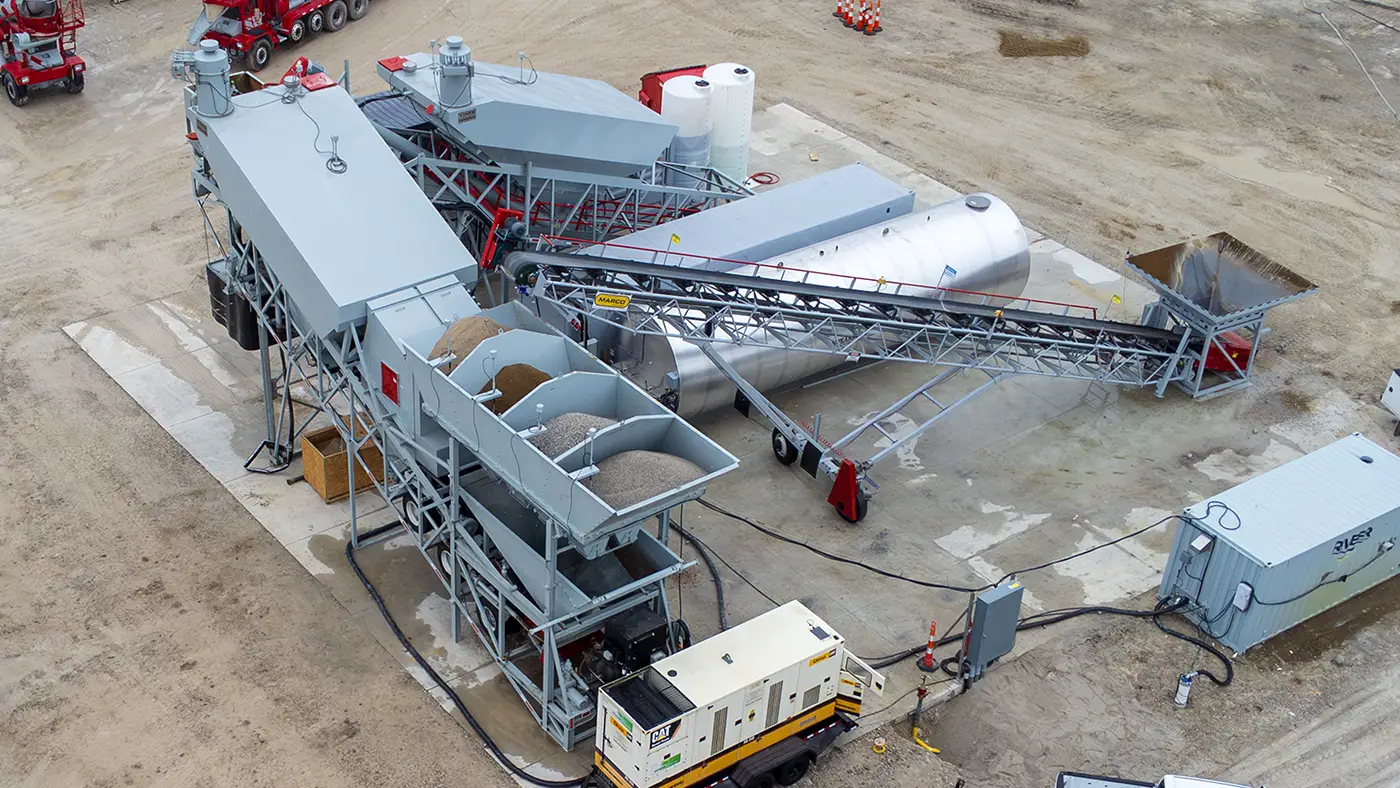

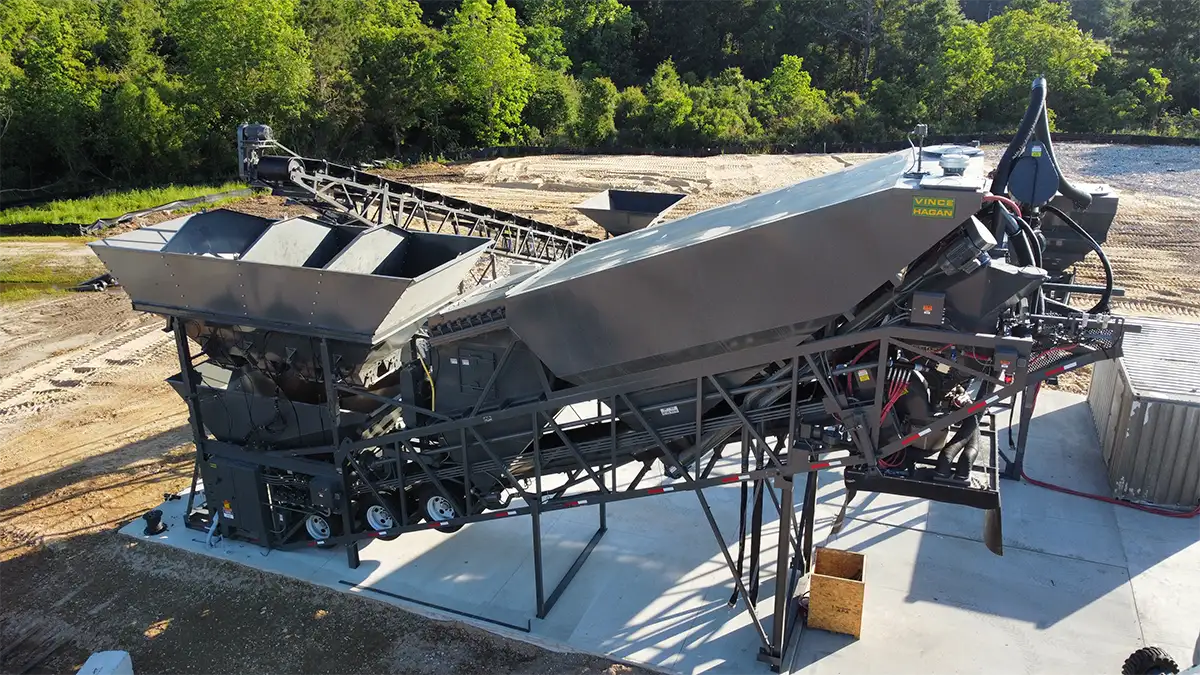

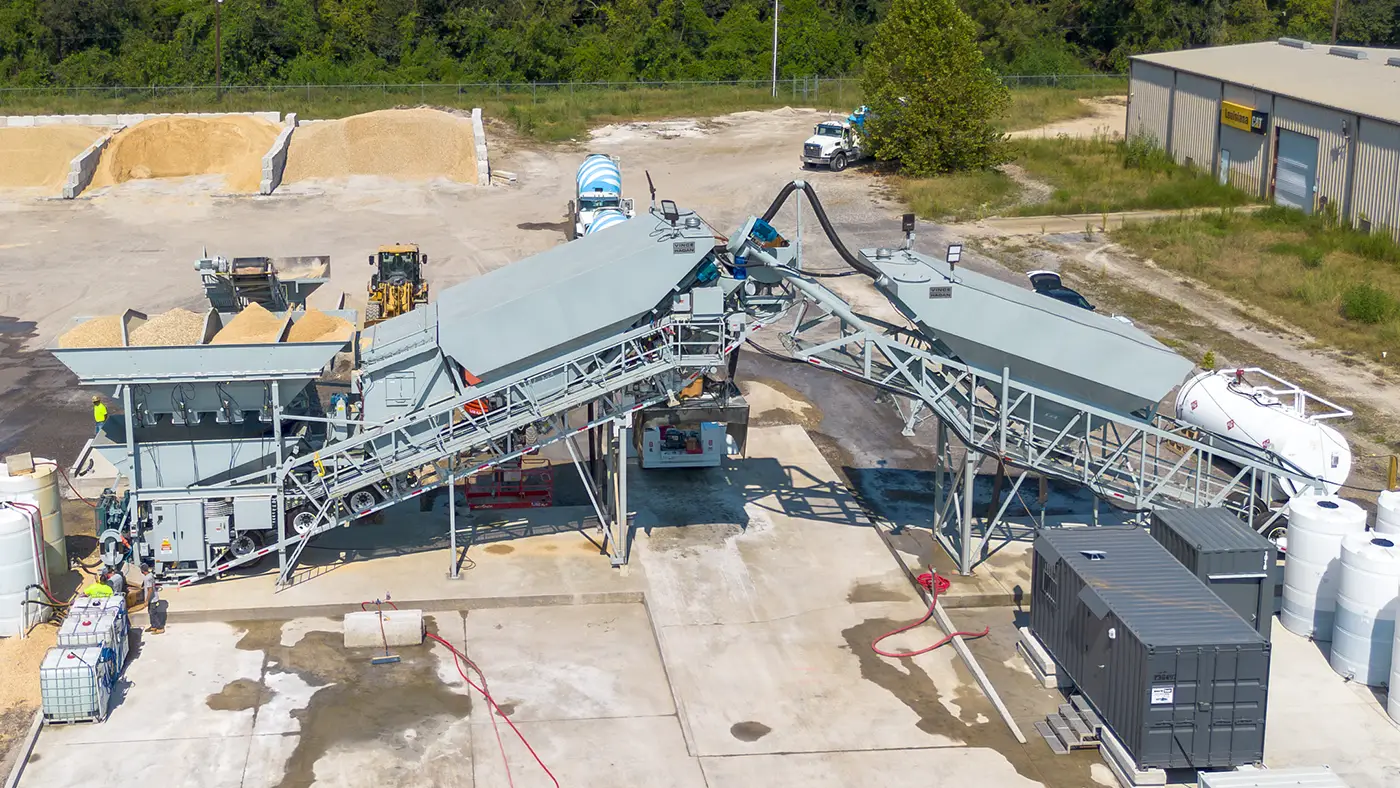

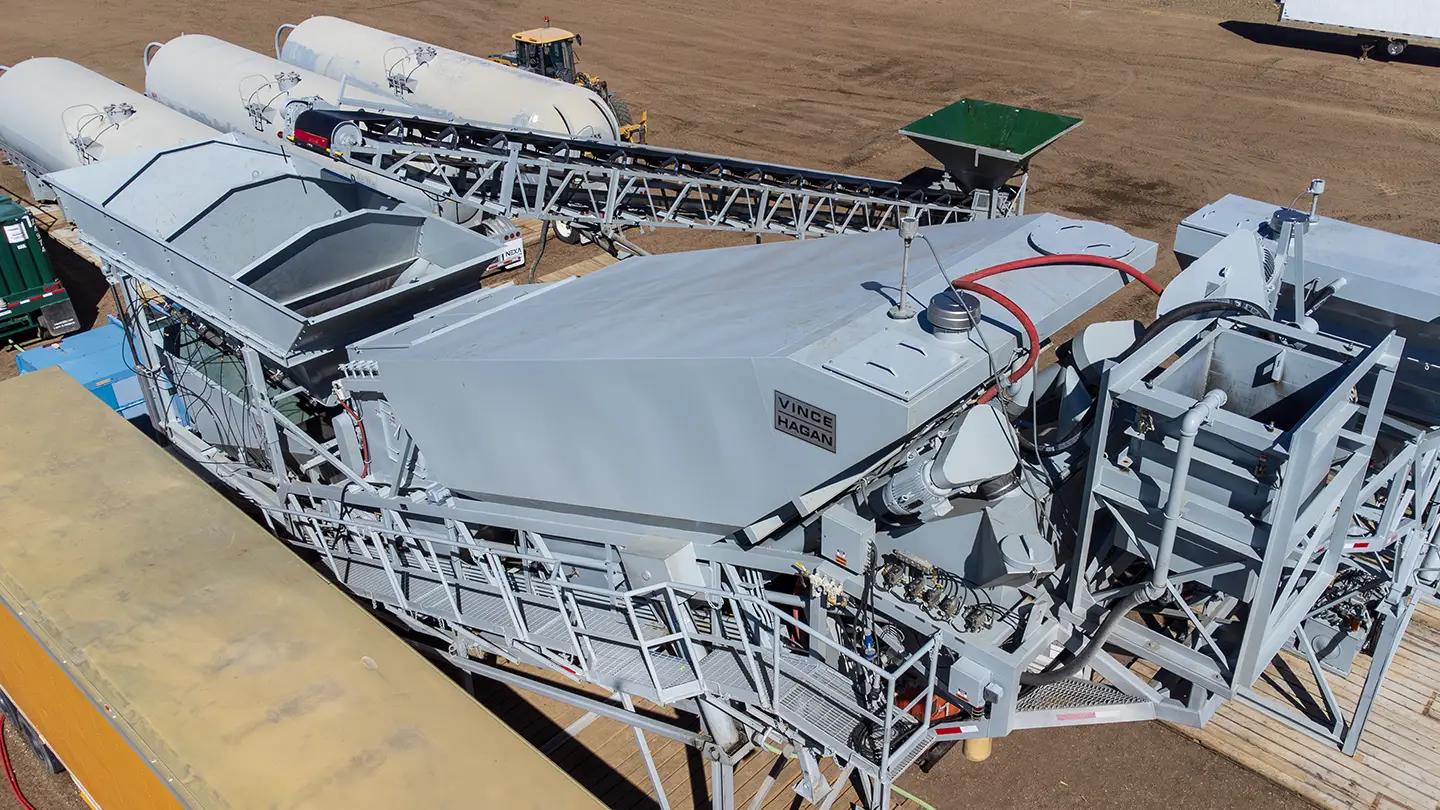

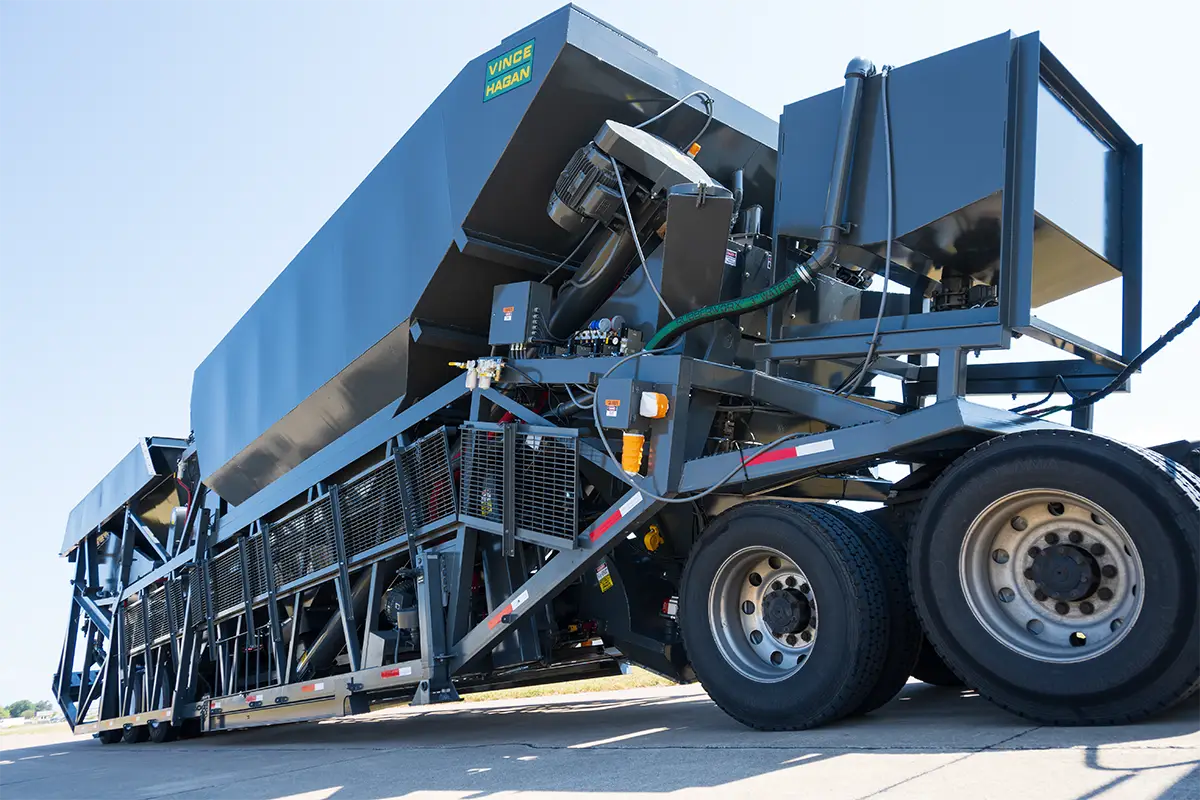

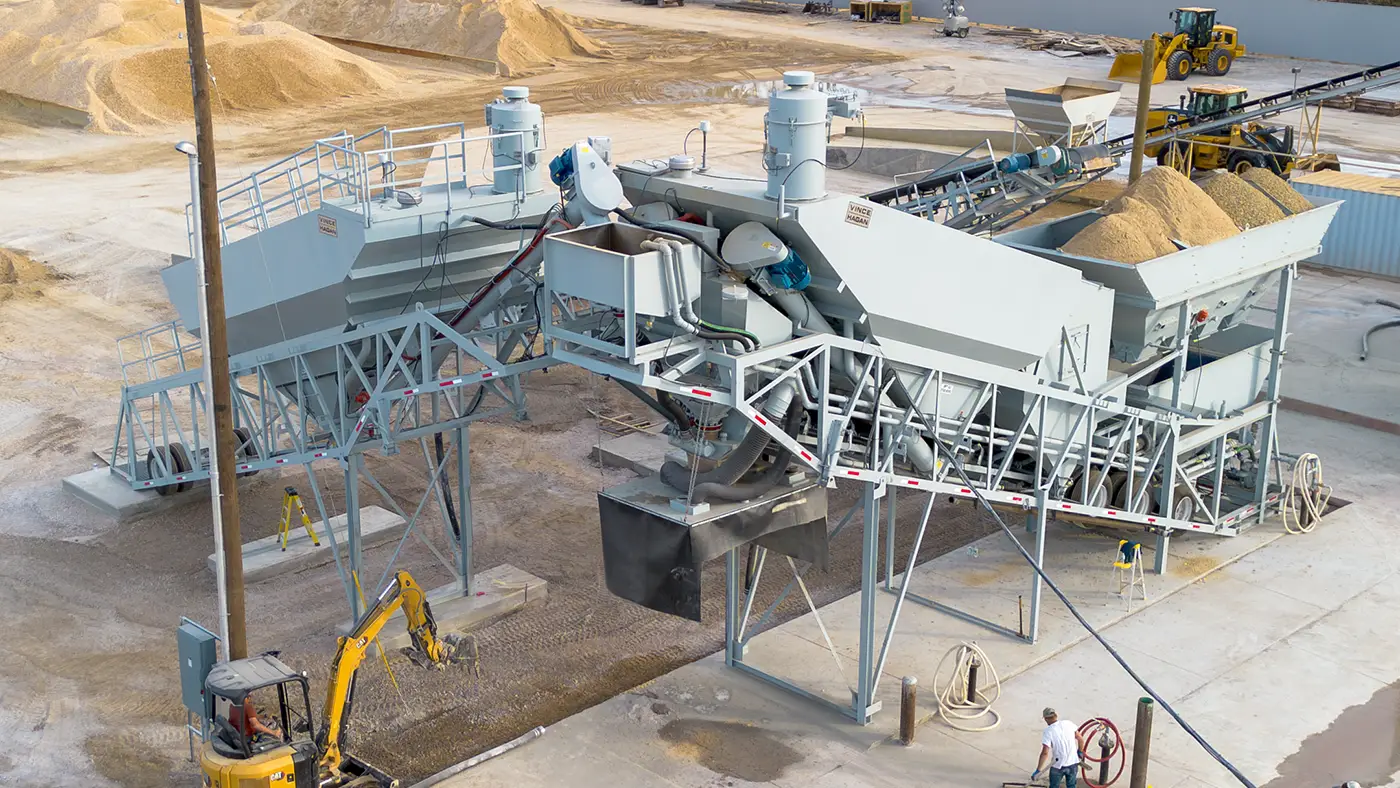

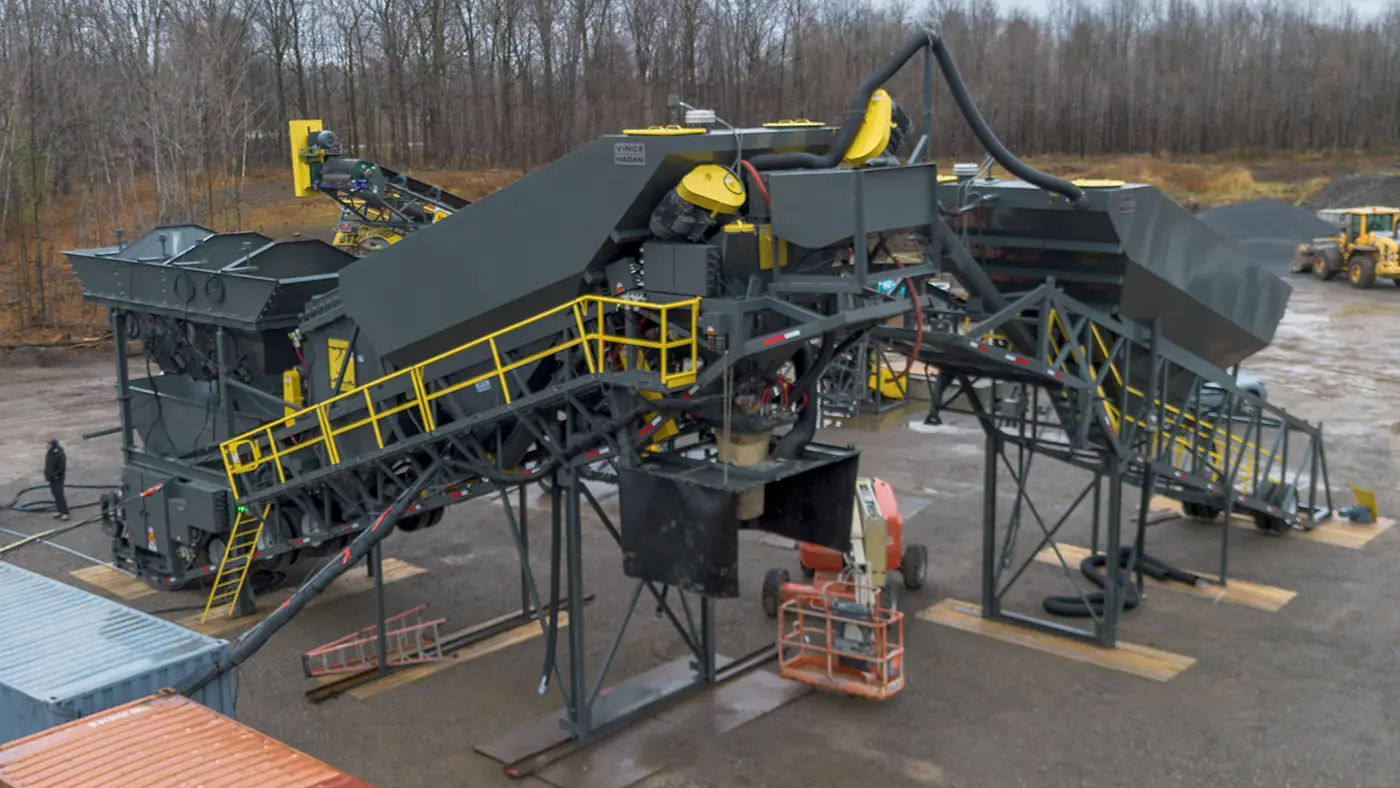

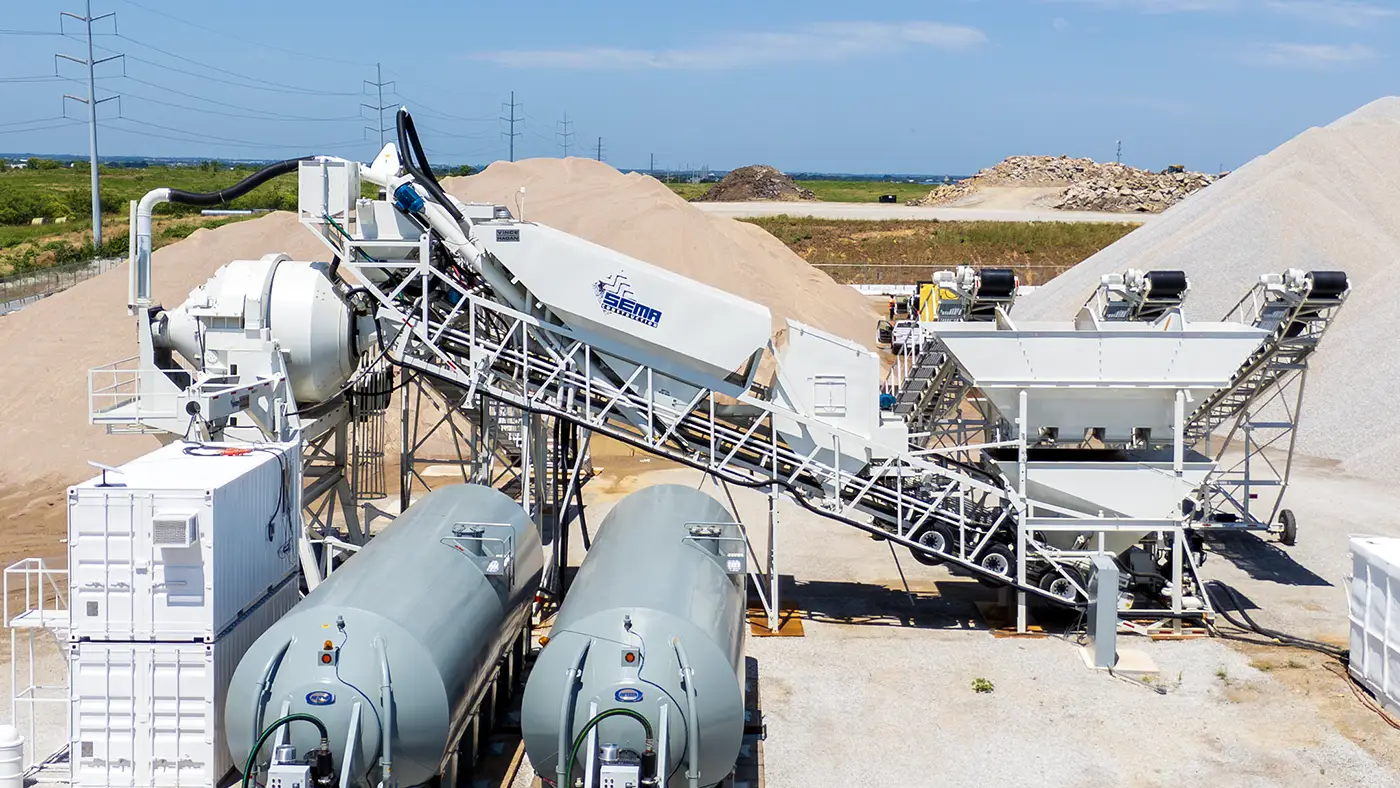

Gallery
