LP-MP Plant

Production rate of 180-350 YD³ Per Hour*

The Vince Hagan Company has redefined high-production paving plants. The Low Profile Mobile Paving Plant meets the rigorous demands of high-production projects, exceeds industry safety requirements, and delivers a production-friendly experience. The LP-MP also offers dual systems for redundancy to protect you from significant losses during large pours. When paired with the SmartVH™ Plant Monitoring System, an array of sensors which collects real-time data of plant mechanical performance, this plant alerts managers or service team members of potential issues. Benefit from exceptional mobility and an impressive four-hour erection time when you choose the company that invented the first mobile batch plant.

Key Specs

  • 35 loads/hour based on 60 sec. mix time – Uniformity test prove mix times as low as 30 sec. for additional production capacity

  • Redundant mechanical systems

  • Real time monitoring of plant operational performance and possible maintenance issues

  • Rotatable Aggregate Bin

  • Unitized sections make for easy transport

  • Erects in as little as 4 hours

VH-GPP - Gravity Cement Paving Plant
Low Profile Mobile Plant - LP-MP Plant for High Production

Transport Mode

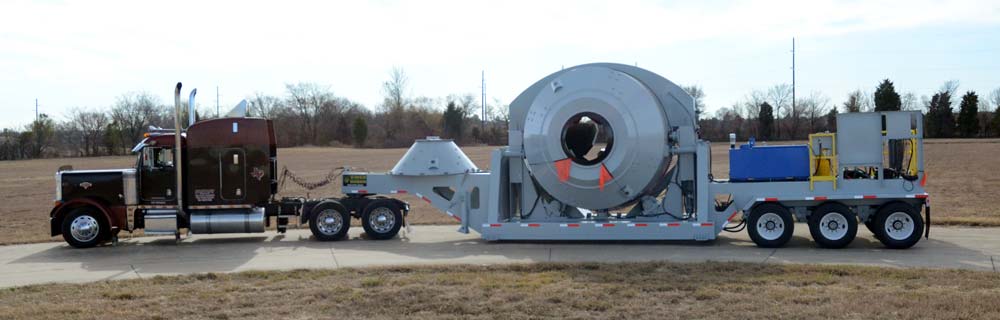

VH-GPP Transport Mode | Smart Tilt Mixer

HEIGHT: 14’ 5.25” • LENGTH: 47’ 1” • WEIGHT: 72,000 lbs

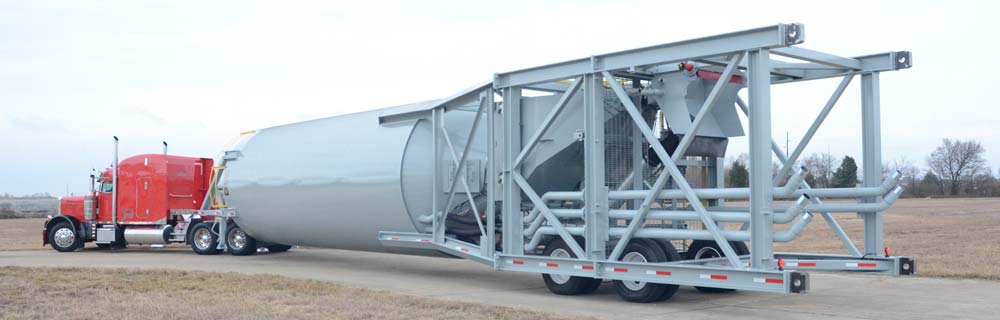

VH-GPP Transport Mode | Auxiliary Silo

HEIGHT: 13’ 4” • LENGTH: 68’ 3” • WEIGHT: 66,000 lbs

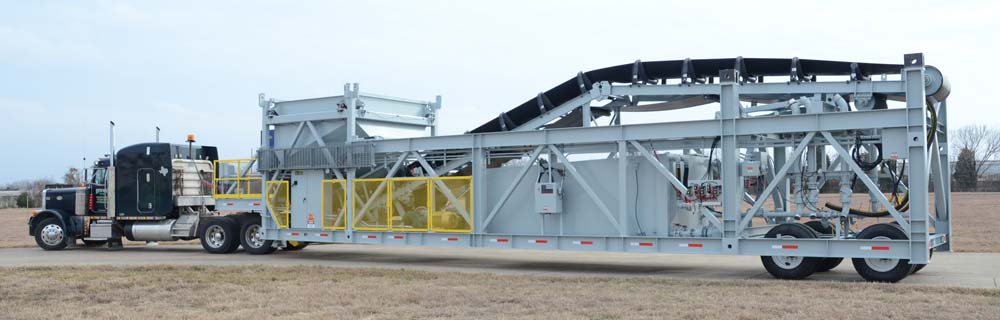

VH-GPP Transport Mode | Conveyor

HEIGHT: 14’ 5” • LENGTH: 60’ 5.75” • WEIGHT: 70,000 lbs
